• Kit ideal for large AG and Construction OTR tire service inflation/deflation
• Kit promotes safety during inflation/deflation process

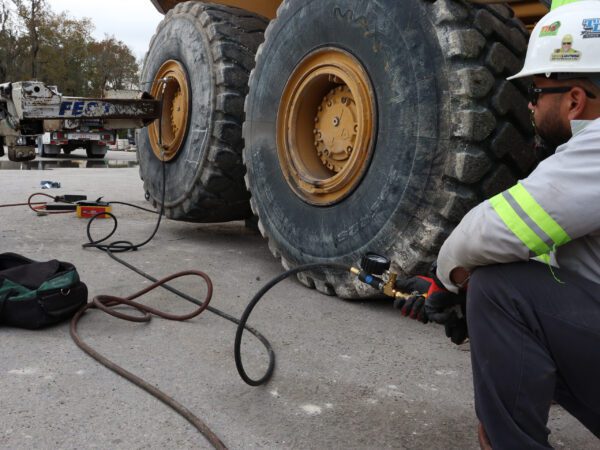

• Keeps tire techs out of trajectory rim/wheel area “danger zone”

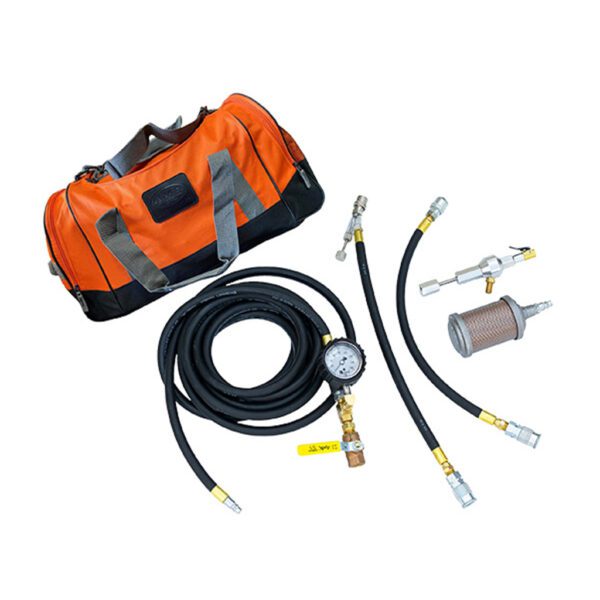

• Comes equipped with all hoses and fittings in Hi-Vis Carrying Bag*

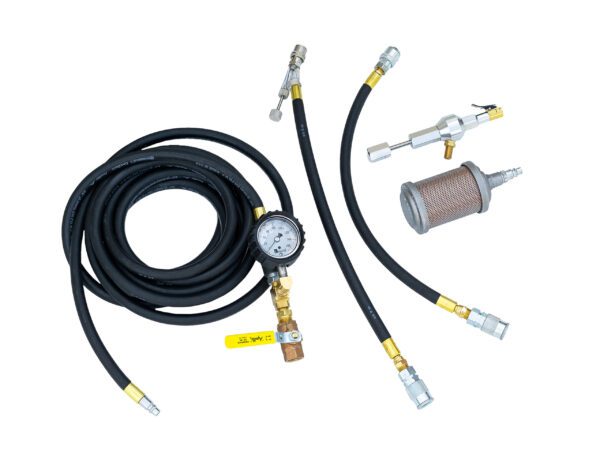

INFLATION / DEFLATION KIT COMPONENTS INCLUDE:

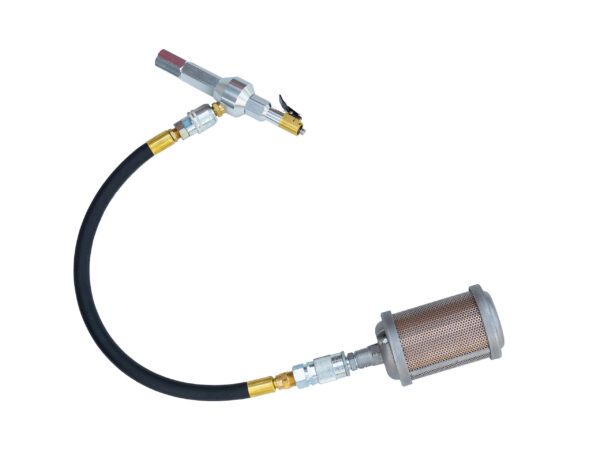

(1) Air Muffler
(2) 20” Hydraulic Hoses
(1) Standard Bore Core Remover and Inflation Chuck with
– Lock-on Chuck (shown on 20” hose)
– Reduces inflation time by 50%
– Features a more secure lock-on style chuck
– Made of durable steel, brass, and plastic
– 1/4 Female NPT allows easy attachment to air hose
– Ideal for nitrogen purging and inflation
– Retractable core housing allows safe removal and replacement of valve core
(1) 51236 Large Bore Core Remover Tool
– Prevents core loss during tire inflation and deflation (see details below)

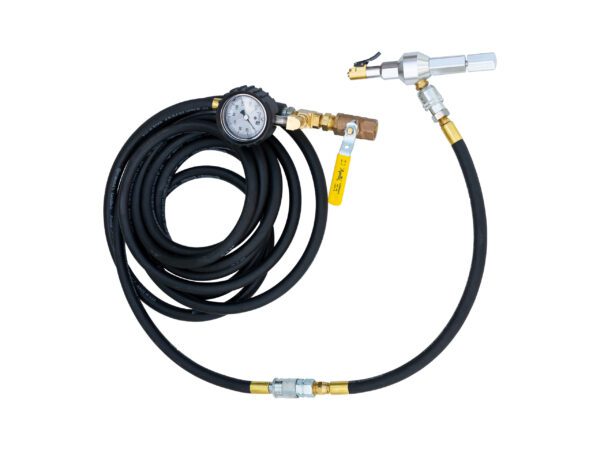

(1) 24682 20 ft. Inflation Hose with Liquid Dial Gauge
– Equipped with Safety Quick-Connect Coupler for fast and easy connection
– Hose rated at 300 PSI
– 1/2” Flow-Through On/Off Valve with 180 PSI Liquid Fill Gauge
