Gripping diameter: 22 – 47 inches (550 – 1,200 mm)
Lifting capacity: 1,653.47 lbs (750 kg)
Grip length: 82.7 inches (2,100 mm)

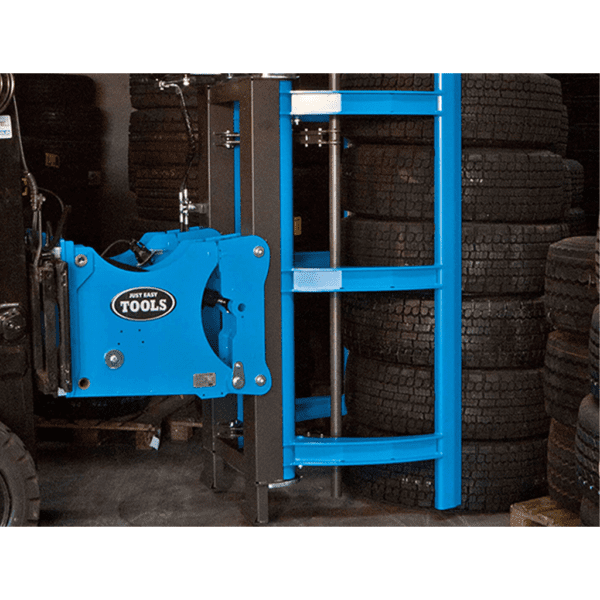

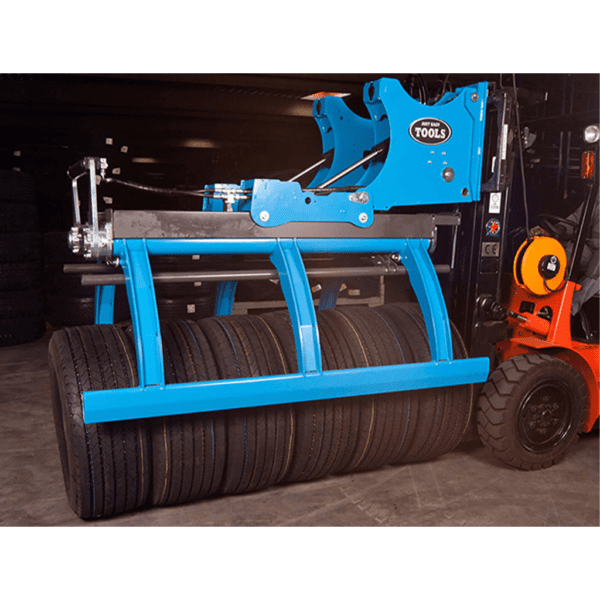

The Easy Stacker is a tool for Fast and Safe Stacking, Moving and Loading of tires
Specially designed for the tire business with a special and safe grip and a size and movements to work effectively in many stock systems and containers and to load and unload trucks from just one side

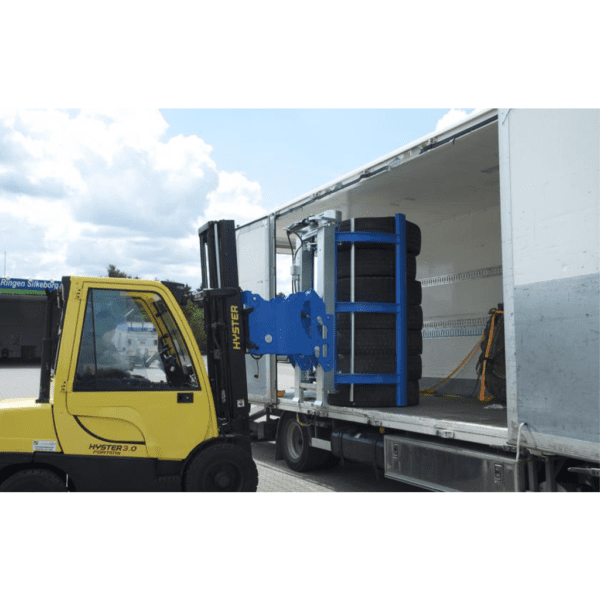

Is very effective for loading and unloading – and with just one man

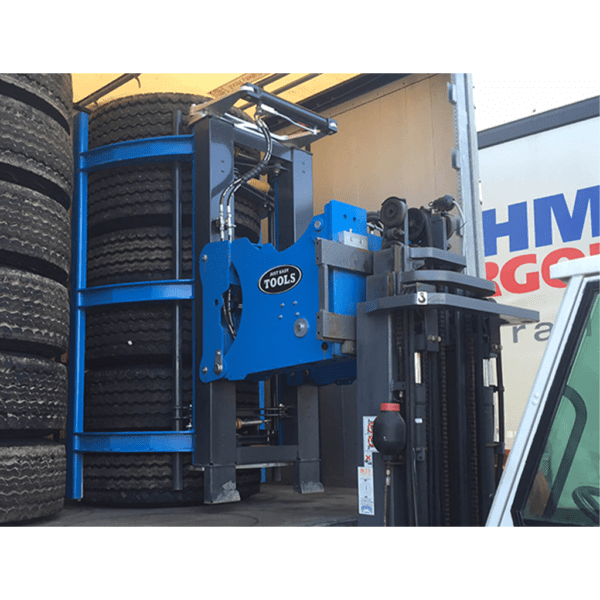

Improves the safety and makes it much easier to fill a trailer completely with tires
Can provide substantial time savings across a whole range of handling operations

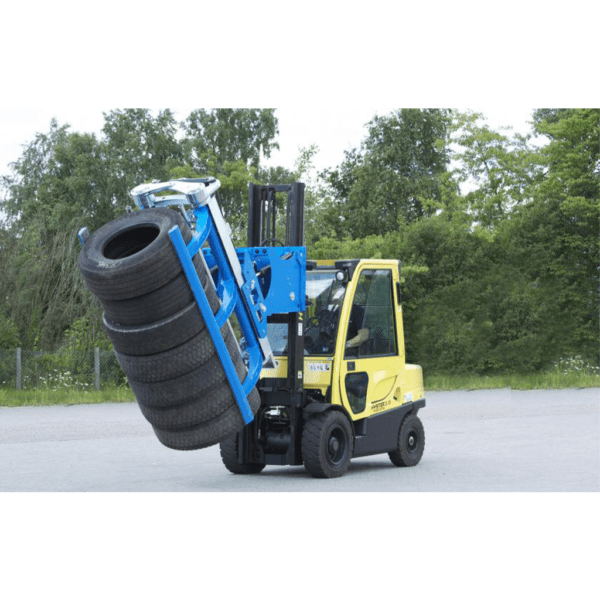

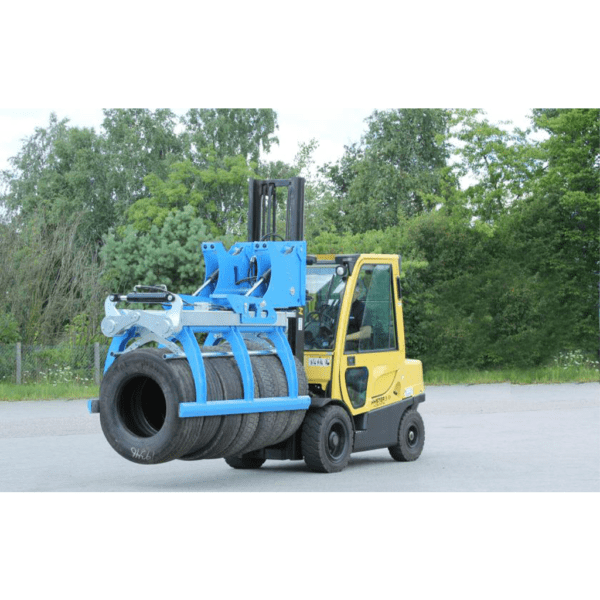

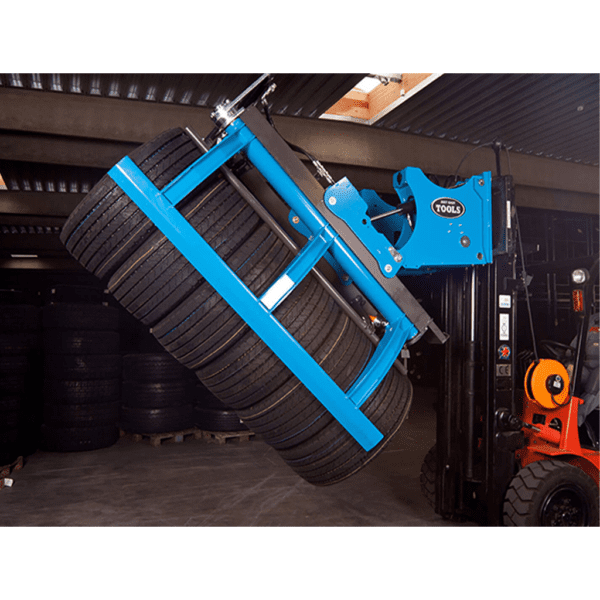

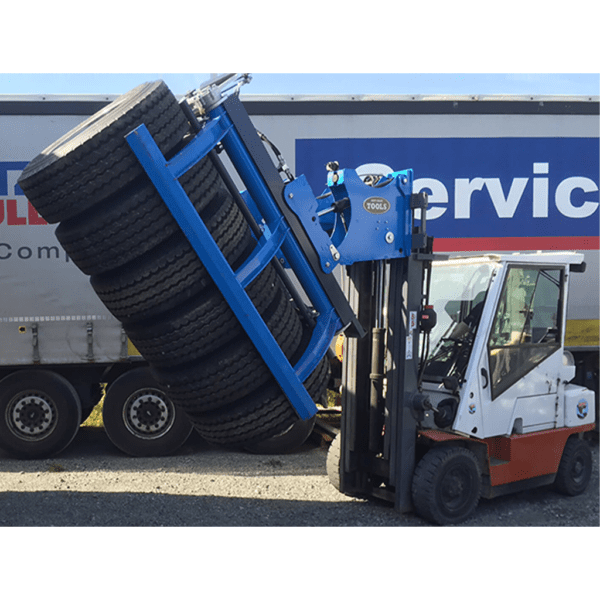

Can tilt and handle the tires – horizontal and vertical
Can in some cases improve the whole stock and handling system. No hard manual stacking, no pallets needed, always a firm grip of all the tires with a careful grip that does not break the bead
Can be the tool to make an effective stock system without shelves and pallets
To be mounted on forklifts or loaders

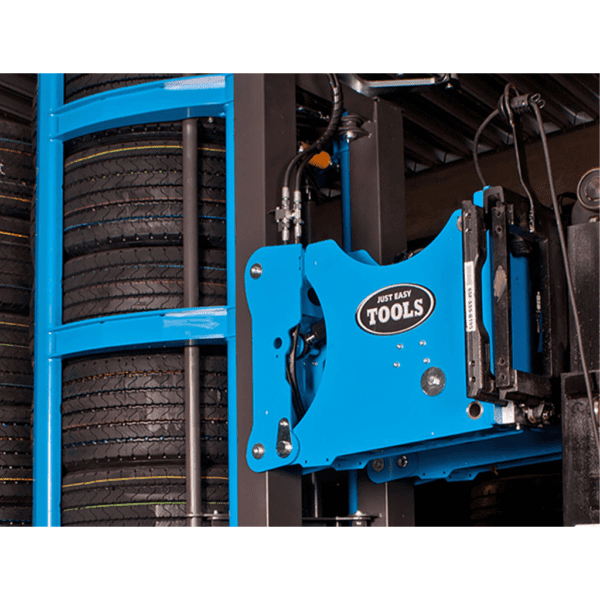

Quick Shift facility to change to and from forks within a minute
Technical Data:
Adjustable gripping force max.: 2,204.6 lb (1,000 kg)
Supply voltage 12V. (possibly 24V)
Hydraulics supply 100 bar. Preferably 3/8” Hose
Lifting height depends on forklift/loader
Horizontal/Vertical. 0-90 degrees
Quick switching on forklift/loader
Net weight: 1388.9 lb (630 kg)
Attachment: ISO/FEM/ITA Class 2 or 3
